Kubota GL11000TM – 11,000 Watt Lowboy II Series Industrial Diesel Generator w/ Output Terminals

$8,198.95 $9,499.95

Free Shipping
Lowest Pricing
No Sales Tax
Premium Authorized Dealer

Added to wishlist

Kubota GL11000TM – 11,000 Watt Lowboy II Series Industrial Diesel Generator w/ Output Terminals

$8,198.95 $9,499.95

Order in the next to get it by

Only .. left! .. people are viewing this, and .. recently purchased it

.. Visitor Right Now

XX Orders:

5 Great reasons to buy from us:

Description

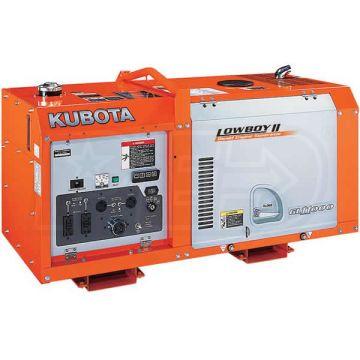

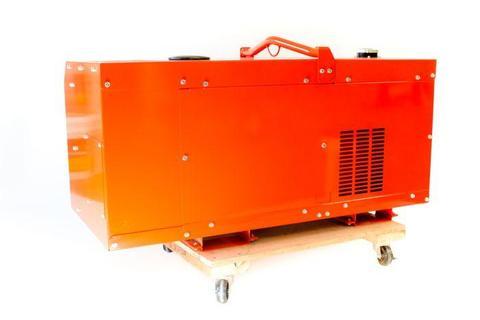

Kubota GL11000TM – 11,000 Watt Lowboy II Series Industrial Diesel Generator w/ Output Terminals

The Kubota LOWBOY II Model GL11000 USA Series is designed to have the minimum possible height while using vertical diesel engines. This is achieved by direct coupling of the engine crankshaft with the cooling fan. Since they require less space for operation, the range of possible applications has been greatly increased. This genset has a very small foot print of 51 x 24.3 x 27.5 inches.

Add an automatic start module and this is ready for a commercial or residential back up or an off the grid primary power source. Units are not weather proof.

This model features a premium Kubota model D722, 3 cylinder, 18.9 HP, diesel fueled, liquid cooled engine with electric start. This model runs at 3600 RPM and generates 11 kW (11 kVA) 60 Hz,of Standby (emergency or maximum) power and 9.9 kW prime (continuous) power at a primary voltage of 120/240 VAC, single phase, 60 Hertz, with voltage accuracy.

Enclosed weight is 650 lbs. Shipping weight 690 lbs. Shipping dimensions 52 W x 25 L x 31 H. Enclosed quietness is 68 db at 7 meter

FEATURES

Kubota Low Boy II Industrial Diesel Generator

Quieter, more compact & cleaner (EPA Tier II) than original Low Boy

479cc Kubota Z482 Liquid-Cooled Diesel Engine

Large capacity oil pan provides oil change intervals up to 200 hours

Dual-element air filter design for heavy-duty jobs in dusty conditions

Keyed Electric Start (Battery Included)

Starter safety relay prevent starter from engaging after start-up

Compact Design & Easy Maintenance

By direct coupling the engine crankshaft w/ cooling fan

Simple maintenance of oil, fuel, battery & cooling water on One side

Large Capacity 7.4 Gallon Diesel Fuel Tank

Provides up to 10 hours @ 100% load on a single fill-up

Monitor Gauges & Automatic Safety Shutdowns

Easily see when there’s water temperature & oil pressure issues

Double Circuit Breaker Protection (Generator & Receptacle)

Shuts the engine down to prevent overcurrent damage

Less Noise During Operation (66 dB(A) @ 23′)

Slower-speed fan, built-in muffler & reduced air intake sound

Plus Forklift pockets, One-Point Lifting Eye & ATS Terminal 1-Year Limited Warranty

SPECIFICATIONS

MODEL		Unit	GL11000
Type		–	Rotating field single-phase AC generator
Frequency		Hz	60
Standby Output		kVA (kW)	11.0 (11.0)
Prime Output		kVA (kW)	10.0 (10.0)
Voltage – Single Phase		V	120/240
Armature Connection		–	Series
Phase / Wire		–	1/3
Power Factor		–	1.0
No. of Poles		–	2
Insulation		Class	Rotor coil; class F, Stator coil; class B
Type of Coupling		–	Direct coupled
AMPS
Single Phase 120V		A	83.3
Single Phase 240V		A	41.7

5-15R (GFCI)		–	N/A
5-20RA (GFCI)		–	2
6-15R		–	N/A
L5-30R		–	1
L6-30R		–	1
CS-6369		–	1
TERMINAL
Terminal		–	Available
DIESEL ENGINE
Type		–	Vertical, liquid-cooled, 4-cycle diesel engine
Model		–	D722
No. of Cylinders		–	3
Bore x Stroke		mm (in.)	67.0 x 68.0 (2.6 x 2.7)
Displacement		L (cu. in.)	0.719 (43.9)
Engine Speed		rpm	3600
Continuous Rated Output		kW (HP)	12.2 (16.3)
Lubricant (API classification)		–	Above CD grade
Oil Capacity		L (qts.)	3.4 (0.9)
Coolant Capacity		L (qts.)	4.1 (1.1)
Starting System		–	Electric – 12 volt DC
SET
Fuel		–	Diesel fuel No.2 (ASTM D975)
Fuel Consumption	at Full Load	L/h (gal./h)	4.1 (1.09)
	at 3/4 Load	L/h (gal./h)	3.3 (0.86)
	at 1/2 Load	L/h (gal./h)	2.7 (0.71)
	at 1/4 Load	L/h (gal./h)	2.2 (0.59)
Fuel Tank Capacity		L (gal.)	28.0 (7.4)
Continous Operation Hours	at Full Load	h	7.0
	at 3/4 Load	h	8.5
	at 1/2 Load	h	10.4
	at 1/4 Load	h	12.7
Battery (Ah/5h)		–	55B24R (12V x 36Ah)
Dimensions L x W x H		mm (in.)	1281 x 618 x 698 (50.4 x 24.3 x 27.5)
Approx. Net Weight		kg (lbs.)	295 (650)
Sound Level (Full Load at 23 ft. [7m])		dB (A)	68
Emergency Stop System		–	In case of abnormal: oil pressure, water temperature, or when the access terminal cover is opened (terminal type only)

Note regarding oil fill level at oil change: Here’s the update from Kubota Engines. The 722 generator on the GL11000 comes with either a 101mm or a 120mm deep oil pan. (4” or 4.75”). The 101 takes .9 gallons of oil. The 120 takes 1 gallon. If the unit has the 4.75” deep oil pan it requires 1 gallon to fill it to the top mark on the dipstick. The GL11000-USA uses dip stick part #1G304-36410.

KUBOTA FILTERS for GL 4500, GL 6500, GL 7000, GL 11000 AND GL14000 Watt Diesel Generators

For the first 2 years or 2000 hours you must use factory filters, or you will void warranty. The owner’s manual recommends you change oil and oil filter first 50 hours. After that change the oil every 100 hours and the oil filter every 200 hours. Suggestion: I like to use Mobil ® Delvac 1300 Super Diesel Motor oil for the engine oil and oil changes. Do not use automotive grade oil.

KUBOTA FILTERS for GL 4500, GL 6500, GL 7000, GL 11000 AND GL14000 Watt Diesel Generators
