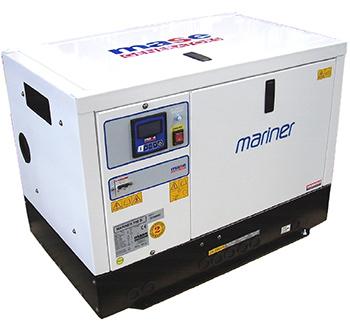

MASE MARINER GENSET 904 - 60 Hz - 1800 RPM 8500 Watt Marine Diesel Generator
Only .. left! .. people are viewing this, and .. recently purchased it
.. Visitor Right Now
XX Orders:
5 Great reasons to buy from us:
The highest quality, most reliable marine generators on the water. This new 8500 watt marine diesel generator will supply all the power you need. This reliable boat generator is Powered by Yanmar diesel, Mase Generators marine gensets are specifically designed and manufactured for installation on-board boats. The diesel generators assure shipbuilders and end users easy installation with high efficiency and performance. Designed for the special demands of the marine environment, Mase Generators marine gensets feature low sound levels and very low emissions.
Hz: 60
Max power single-phase range (KW): 8,5
Series: Mariner
Frame: Soundproof
Engine: Yanmar
R.p.m.: 1800
CBU control panel (Mod-Bus transmission Unit)
New design, latest technology, big display and soft touch buttons for quick menu navigation, start and stop procedure, IP54 protection grade. Very compact MASTER CBU 93x93mm (3.66x3.66 in). CBU has many functions for easy monitoring of the generator:
- ON/OFF/START/STOP/MENU
- Digital hour-meter, Main voltage, Generator Battery voltage, external battery pack voltage, Frequency, Service time, Event list of last 10 alarms and
- 13 different alarms icons
- 485 Mod-Bus connector for monitoring generator by boat main control
|

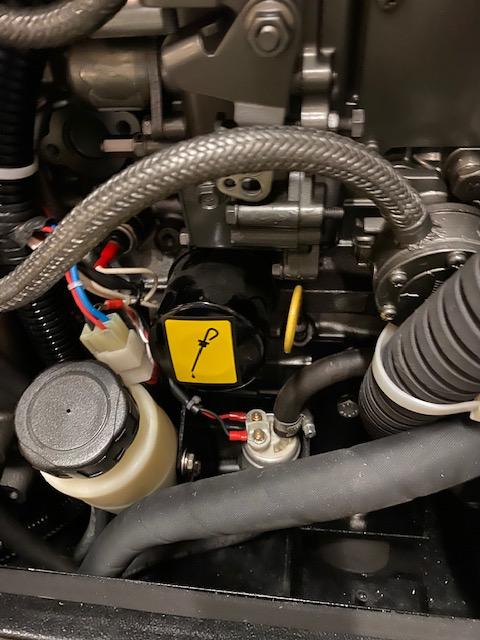

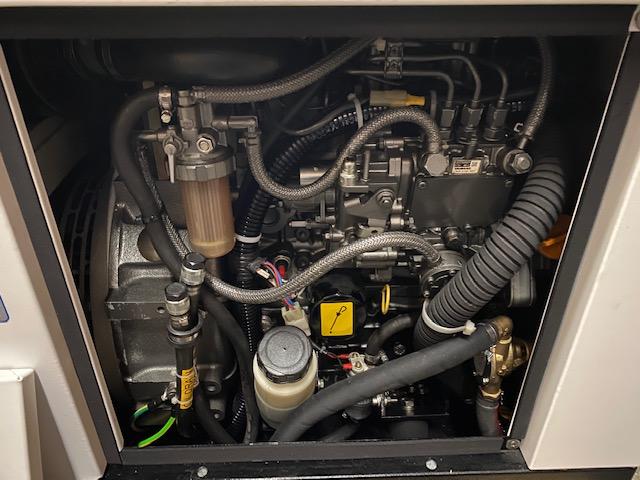

Engine
|
Easy access in case of maintenance to the feeding system and lubrication, of the sea/water pump and the air filter.
Safety stop in case of low oil pressure
Safety stop in case high water/exhaust gas temperature. Oil and fuel filters of easy access.
Alternator
- Synchronous, 4 poles, self-regulated, brush less self-excited.
- Rotor and stator epoxy resin coated against external
- Rotor dinamically
- Insulation class
Soundproof cabin
The structure is composed by a steel mainframe and painted pa- nels of aluminum 5754 type, that has a very high resistance to external agents.
Thanks to this structure, soundproof cabin has a limited weight and an easy accessibility in case of maintenance services, also if installed in narrow places.

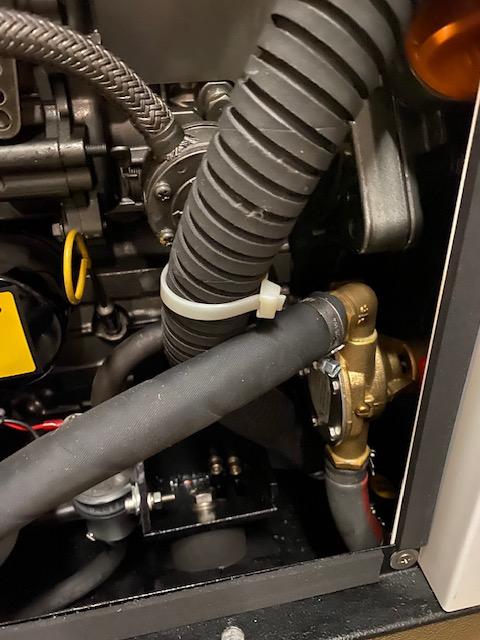

Cooling system
The cooling of the engine is based on a closed inner flow of coolant. The system is based on a cupronickel heat exchange seawater/coolant type, where the thermal exchange occurs between coolant and seawater. Two separate pumps contribute to the flow of the coolant and the sea water.
|
|
60 Hz |
||
|
Dimensions (Leng. x Width x Height) |
945mm x |
535mm |
x 624mm |
|
37,2in x |
21,1in |
x 24,6in |
|
|
Weight |
295 |
- |
650,36 |
|
Noise level emission |
51 dBA @ 7mt |
||
FITTINGS (optional)
- EXHAUST COMPONENTS KIT
- SIPHON BREAK
- WATER-GAS SEPARATOR KIT
-
SLAVE CBU CONTROL PANEL WITH A SHIELD CONNECTING CABLE 10 Mt. ( 32.8 ft ) LONG
Estimated between and
Will usually ship within 1 business day.
 |
